Roboteq's SBL1360A is a medium-current controller capable of driving one hall-sensor equipped Brushless DC motor up to 60V and 30A. The controller can operate in Trapezoidal mode or Sinusoidal mode with Field Oriented Control (FOC). Several sensors types are supported in order to detect the rotor position and sequence power to the motors' 3 windings in order to generate smooth continuous rotation. The controller can drive sensorless motors in trapezoidal mode.The SBL1360A accepts commands...

Roboteq's GBL2660 is a features-packed, high-current, dual channel controller for brushless DC motors. The controller can operate in one of several modes in order to sense the rotor position and sequence power on the motors' 3 windings in order to generate smooth continuous rotation. The controller also uses the Hall sensor and/or Encoder information to compute speed and measure travelled distance inside a 32-bit counter. The motors may be operated in open or closed loop speed mode, position...

Roboteq's GBL2660 is a features-packed, high-current, dual channel controller for brushless DC motors. The controller can operate in one of several modes in order to sense the rotor position and sequence power on the motors' 3 windings in order to generate smooth continuous rotation. The controller also uses the Hall sensor and/or Encoder information to compute speed and measure travelled distance inside a 32-bit counter. The motors may be operated in open or closed loop speed mode, position...

Roboteq's GBL2660S is a features-packed, high-current, single channel controller for brushless DC motors. The controller can operate in one of several modes in order to sense the rotor position and sequence power on the motors' 3 windings in order to generate smooth continuous rotation. The controller also uses the Hall sensor and/or Encoder information to compute speed and measure travelled distance inside a 32-bit counter. The motors may be operated in open or closed loop speed mode,...

Roboteq's SBLM2360 is a features-packed, medium-current, dual channel controller capable of driving two brushless DC motors up to 60V and 30A per channel. The controller can operate in Trapezoidal mode or Sinusoidal mode with Field Oriented Control (FOC). Several sensors types are supported in order to detect the rotor position and sequence power to the motors' 3 windings in order to generate smooth continuous rotation. The motors may be operated in open or closed loop speed mode, position...

Roboteq's FBL2360T is a features-packed, medium-current, dual channel controller capable of driving two brushless DC motors up to 60V and 60A per channel. The controller can operate in Trapezoidal mode or Sinusoidal mode with Field Oriented Control (FOC). Several sensors types are supported in order to detect the rotor position and sequence power to the motors' 3 windings in order to generate smooth continuous rotation. The controller can drive sensorless motors in trapezoidal mode.The motors...

Roboteq's FBL2360TS is a features-packed, medium-current, single channel controller capable of driving one brushless DC motor up to 60V and 120A. The controller can operate in Trapezoidal mode or Sinusoidal mode with Field Oriented Control (FOC). Several sensors types are supported in order to detect the rotor position and sequence power to the motors' 3 windings in order to generate smooth continuous rotation. The controller can drive sensorless motors in trapezoidal mode.The motor may...

The FBL2360TE is the latest hardware revision of the FBL2360 motor controller (v2.4) with Ethernet Connectivity and STO. This hardware revision includes support for dual channel resolver feedback for sinusoidal commutation. Roboteq's FBL2360TE is a features-packed, high-current, dual channel controller for brushless DC motors. The controller can operate in one of several modes in order to sense the rotor position and sequence power on the motors' 3 windings in order to generate smooth...

The FBL2360TES is the latest hardware revision of the FBL2360S motor controller (v2.4) with Ethernet Connectivity. This hardware revision includes support for resolver feedback for sinusoidal commutation.Roboteq's FBL2360TES is a features-packed, high-current, single channel controller for brushless DC motors. The controller can operate in one of several modes in order to sense the rotor position and sequence power on the motors' 3 windings in order to generate smooth continuous rotation.The...

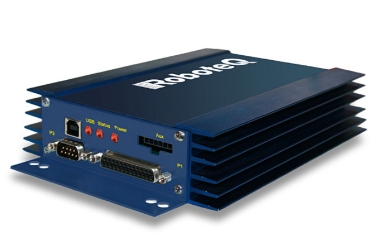

Roboteq's HBL23120 is a high power, dual channel controller capable of driving two hall-sensor equipped Brushless DC motors up to 120V and 40A per channel. The controller can operate in Trapezoidal mode or Sinusoidal mode with Field Oriented Control (FOC). Several sensors types are supported in order to detect the rotor position and sequence power to the motors' 3 windings in order to generate smooth continuous rotation. The controller can drive sensorless motors in trapezoidal...

Roboteq's HBL2360A is a high-current, dual channel controller capable of driving two hall-sensor equipped Brushless DC motors up to 60V and 75A per channel. The controller can operate in Trapezoidal mode or Sinusoidal mode with Field Oriented Control (FOC). Several sensors types are supported in order to detect the rotor position and sequence power to the motors' 3 windings in order to generate smooth continuous rotation. The controller can drive sensorless motors in trapezoidal mode.The...

Roboteq's GBL2660SE is a features-packed, high-current, single channel controller for brushless DC motors. The controller can operate in one of several modes in order to sense the rotor position and sequence power on the motors' 3 windings in order to generate smooth continuous rotation. The controller also uses the Hall sensor and/or Encoder information to compute speed and measure travelled distance inside a 32-bit counter. The motors may be operated in open or closed loop speed mode,...

Roboteq's GDC3660 is a feature-packed, very high-current, triple channel controller for brushed DC motors. The controllerfeatures a high-performance 32-bit microcomputer and quadrature encoder inputs to perform advanced motion control algorithms. The motors may be operated in open or closed loop speed mode, position mode or in torque mode.The GDC3660 features several Analog, Pulse and Digital I/ Os which can be remapped as command or feedback inputs, limit switches, or many other functions....

Roboteq's GDC3660 is a feature-packed, very high-current, triple channel controller for brushed DC motors. The controllerfeatures a high-performance 32-bit microcomputer and quadrature encoder inputs to perform advanced motion control algorithms. The motors may be operated in open or closed loop speed mode, position mode or in torque mode.The GDC3660 features several Analog, Pulse and Digital I/ Os which can be remapped as command or feedback inputs, limit switches, or many other functions....

Cable for connecting PwrCtl voltage to the SDC/SBL controllersRTQ-CABLE-S_PWRCTL

RTQ-CABLE-S_PWRCTL

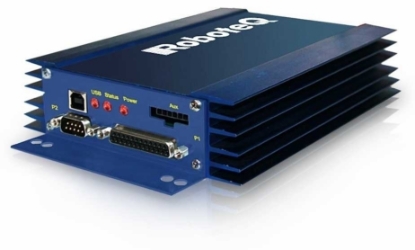

Roboteq's HDC2460 controller is designed to convert commands received from a RC radio, Analog Joystick, wireless modem, PC (via RS232 or USB) or microcomputer into high voltage and high current output for driving two DC motors at up to 60V and 150A per channel. Using CAN bus, up to 127 controllers can be networked at up to 1Mbit/s on a single twisted pair.The controller features a high-performance 32-bit microcomputer and quadrature encoder inputs to perform advanced motion control algorithms...

Roboteq's HDC2460S controller is designed to convert commands received from a RC radio, Analog Joystick, wireless modem, PC (via RS232 or USB) or microcomputer into high voltage and high current output for driving one DC motor at up to 60V and 300A. Using CAN bus, up to 127 controllers can be networked at up to 1Mbit/s on a single twisted pair.The controller features a high-performance 32-bit microcomputer and quadrature encoder inputs to perform advanced motion control algorithms in Open Loop...

Break-out board with 15-pin male DSub connector. Plugs in all Roboteq motor controllers equipped with 15-pin connectors: SDC2xxx, MDC1xxx, MDC2xxx, XDC2xxx, SBL1xxx, MBL1xxx. Brings all of the controller's IO to pads for easy soldering of potentiometers, switches, relays or other accessories. A 9-pin female DSub connectors carries the controller's RS232 signals for direct connection to PC's standard COM port. Use not included 9-pin DSub to 9-pin DSub cable for PC to break-out board...

Fitting a very compact 70x70mm footprint, Roboteq's SDC2160 controller is designed to convert commands received from an RC radio, Analog Joystick, wireless modem, PC (via RS232 or USB) or microcomputer into high voltage and high current output for driving two DC motors at up to 60V and 20A per channel. Using CAN bus, up to 127 controllers can be networked at up to 1Mbit/s on a single twisted pair.The controller features a high-performance 32-bit microcomputer and quadrature encoder inputs to...

Roboteq's HIM2360 is a features-packed, high-current, controller capable of driving two AC Induction motors at up to 60V and 75A per channel. The controller can operate in one of several modes in order to sense the rotor position and sequence power on the motors' 3 windings in order to generate smooth continuous rotation. The controller also uses the Encoder information to compute speed and measure travelled distance inside a 32-bit counter. The motors may be operated in open or closed loop...
