Compact and light-weight, these motors are available in a lower-cost, ferrite-magnet two-brush version designed for high-volume OEM use.
Diameter (inches) 2.4
Length (inches) 4.1
Peak HP .31
Stall Torque (oz-in) 250
Efficiency 75%
Voltage 24V*
RPM 4900
Shaft Dia. (inches) 5/16
Shaft Length (inches) 1.4
Magnet Type Ferrite
No Load Amps 1.1
Resistance (Ohms) 0.58
Kt (oz-in/Amp)6.45
Kv (RPM/Volt) 210
Weight (pounds) 2.0
Getting high efficiency from a low-voltage motor is not easy. There are many factors that effect efficiency. We have optimized each of these factors to achieve very high efficiency in these motors.
Type Economy
Voltage 24
Peak Efficiency (PE) 75%
RPM at PE 2300
Torque at PE (oz-in) 21
Horsepower at PE 0.05 HP
Current at PE 2 Amps
The RPM is the same in both directions to within about 3%.
0-F24-150-24V

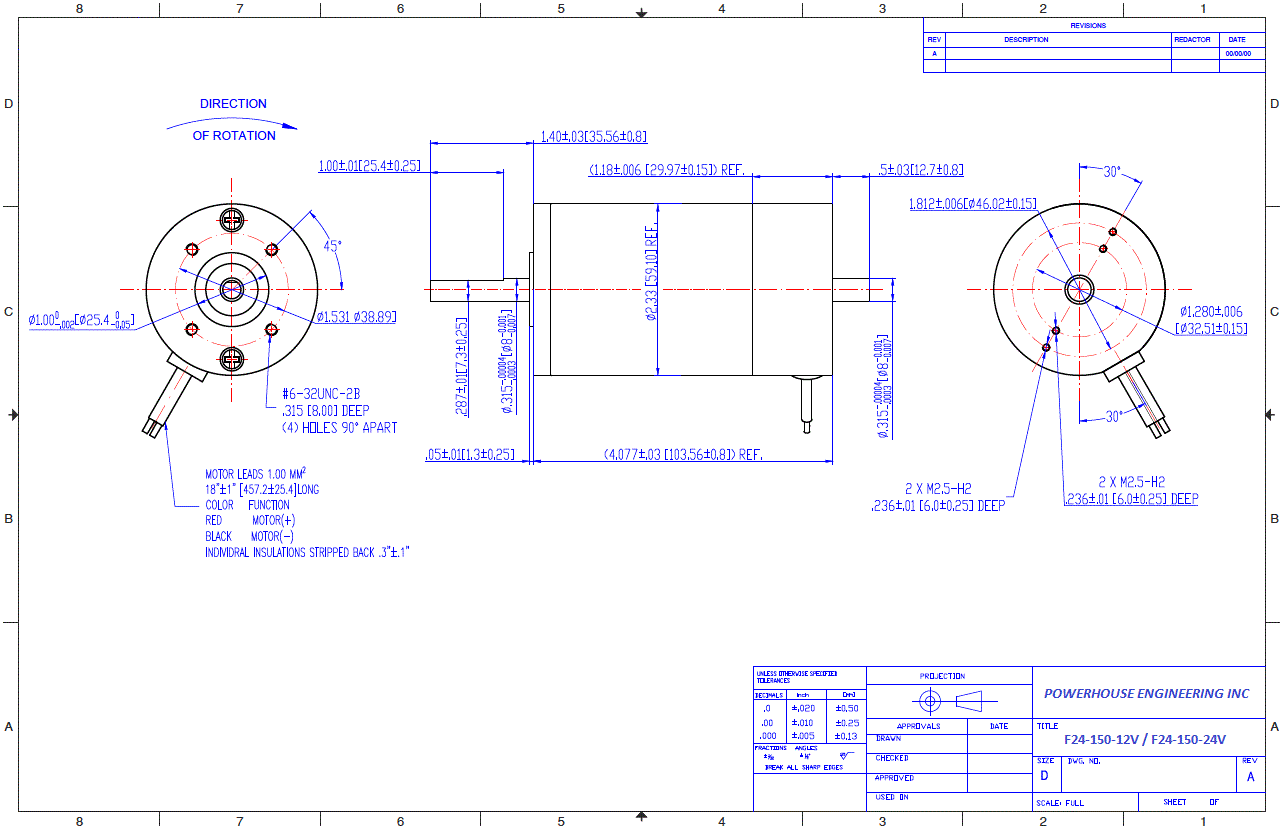

Tech Drawing
