The AmpFlow speed reducers are heavy-duty, low-cost gearheads that work with any of the three-inch diameter AmpFlow motors.
The speed reducers use a unique three-stage chain-and-sprocket mechanism that reduces cost while delivering very high torque capacity.
This unit provides speed reduction and torque multiplication, and it's an easy way to "bolt in" the AmpFlow motors.
Nominal Voltage: 12V
Peak Horsepower: 0.7
Reduction Ratio: 1:15.9
Stall torque:450 in-lb
Weight: 7.8lb
0-E30-150-12-G16

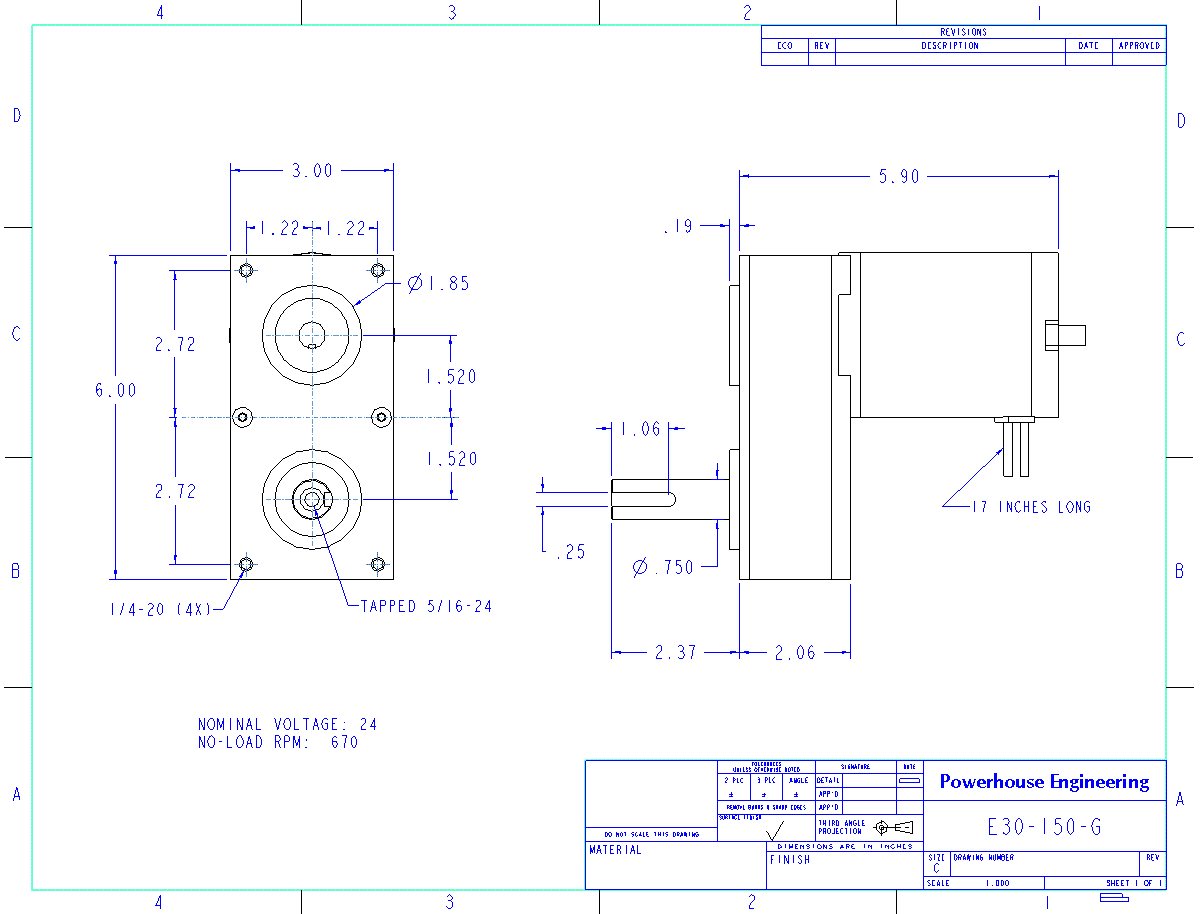

Measurements
