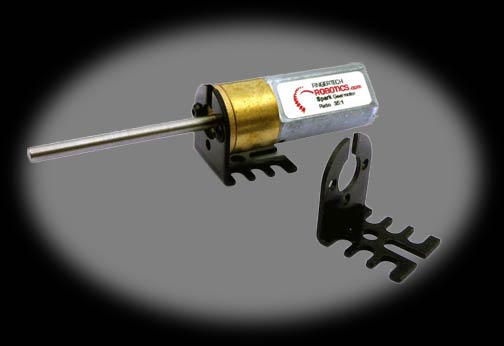

These anodized aluminum motor mounts will fit just about any small motor with mounting hole distances from 10mm - 12.5mm (0.39 - 0.49in). Especially suited to both Gold and Silver Spark motors, they will also hold all Mini Metal Gearmotors small Copal motors, Maxon motors, etc.
Specifications:- Width: 16mm (0.63in)
- Height: 19.8mm (0.78in)
- Length: 18.6mm (0.73in)
- Thickness: 1.45mm (0.057in)
- Shaft height: A motor with 11mm hole spacing will raise the motor shaft up to 11.7mm (0.46in).
- Seven different mounting slots will fit up to 3mm or 4-40 sized screws.- Weight: 1.5grams (0.05oz)
- Screws not included. Use 2-56x1/8 inch screws for Spark motors.
0-FT-MOTOR-MOUNT
CAD File
