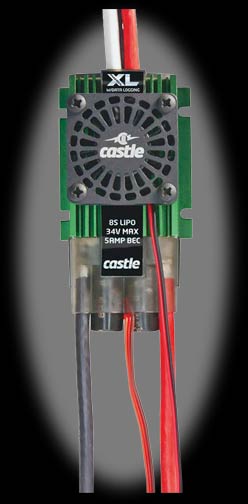

0-CSEM8100 Castle Creations 1/5 Mamba XL 34V Extreme <p><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">It's time for 1/5th scale buggies, trucks and on road cars to experience the incredible torque and speed of Castle electric drive. The new Mamba XL is the only controller on the market able to handle the loads required to power these surprisingly heavy vehicles to insane speeds.

</font></p>
<p><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">The Mamba XL features all of the standard Mamba series programming features PLUS a first for the RC car market, data logging. Use the data from the controller to measure parameters such as your battery volts, battery ripple voltage, amp draw, motor rpm, and controller temperature. This is a great way to make sure that the rest of your setup is performing within its limits!</font></p>
<p><font color="cccccc" size="2" face="Arial, Helvetica, sans-serif">Features</font><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif"><br />
Brushed and brushless motor capable<br />
Reversible in brushed and brushless mode<br />
Handles up to 6S LiPo input<br />
Sensored and sensorless motor operating modes<br />
Switching BEC provides power for servo and receiver all the way to 6S<br />
12V motor fan<br />
Profiles can be custom designed on a PC with the optional Castle Link PC programming software<br />
Infinitely adjustable throttle and brake curves with timing advance<br />
Punch Control allows dialing in horsepower where needed<br />
Brake Strength allows straight tracking under hard braking<br />
Drag Brake helps entry into corners<br />
Start Power for smooth launches</font></p>
<table width="100%" border="1" cellspacing="0" cellpadding="0">
<tr>
<td colspan="2"><font color="cccccc" size="2" face="Arial, Helvetica, sans-serif">Specs</font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Max Number of Cells </font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">8S LiPo (33.6V) </font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Continuous Current </font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">80A</font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Burst Current </font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">150A</font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">BEC</font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">5 amp </font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Power Rating </font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">1/5th Scale RC </font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Wire Gauge to Motor </font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">8 gauge </font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Wire Gauge to Battery </font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">8 gauge </font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Weight without Wires </font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">4.9oz (140.4g) </font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Weight with Wires </font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">7.8oz (222.4g) </font></td>
</tr>
<tr>

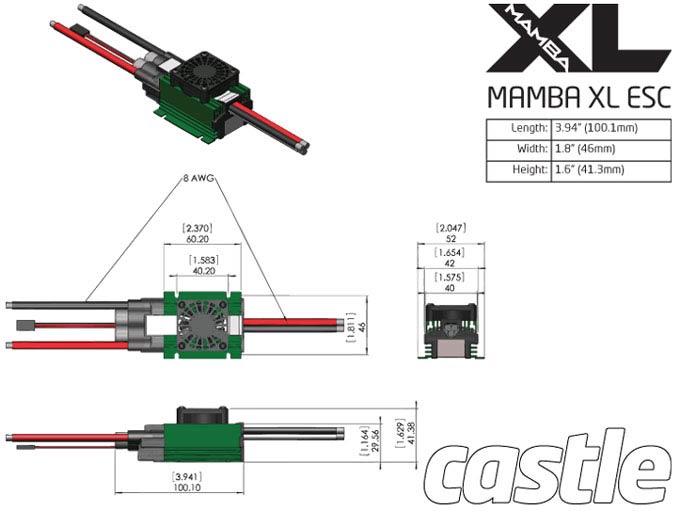

<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Size</font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">4 x 2 x 1.6 in. (102 x 51 x 41mm) </font></td>
</tr>
</table>
